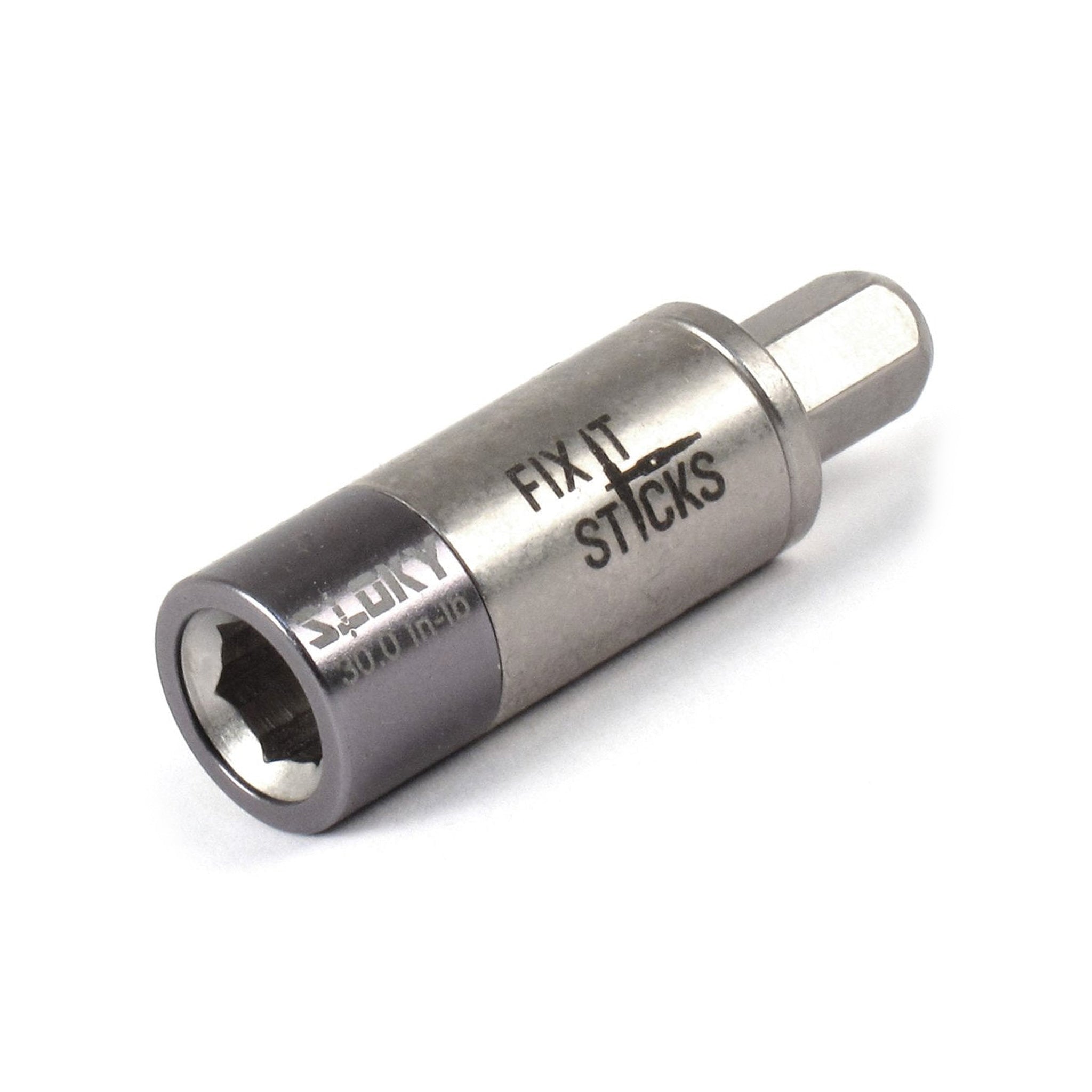

上品な SmallTorqueLimiter_30in.jpg?v= DriveTools

• Insertion angle (handle recess): 3/8SQ, insertion angle (socket convex): 3/8SQ
• Torque accuracy (%): ±10
• Regulation torque: 15.0 Nm
• Total Length: 2.1 inches (53 mm)
• Width: 0.8 inches (20 mm)

The sleeve type torque system allows you to attach screws with a smart prescription torque.
When the prescription torque has been reached, it will prevent overtorque.
The insertion angle of the handle is 3/8 SQ and the convex socket is 3/8 SQ so you can use it with your socket.
Torque product is larger than normal Smark.
When the prescribed torque is reached, the click sound will sound and spin the same torque value even after continued tightening.
Unlike other torque tools, the friction force of each part inside the torque generates torque. Ultra Compact
Smulk: Abbreviated for smart torque driver.
Can be loosened counterclockwise. (Torque management cannot be performed.)
For precision work where torque management is required.
Attach the handle and bit, align the torque handle vertically to the object and rotate clockwise.
Clicking sound when the prescription torque is reached. The tightening is complete. (The handle will open even when tightened after finish.) )
Accuracy ± 10%, estimated number of uses is approximately 5,000 times.
Manufacturer's Endurance Test Method: When tightening, the 9 click sounds (tightening angle up to 90 degrees) count once at the point of tightening. Durability tested 20,000 times clear.
This product is intended for manual use, and should not be used with electric tools.
This model is a collaboration between PROCHI and SLOKY company.
Images are for illustrative purposes only.
